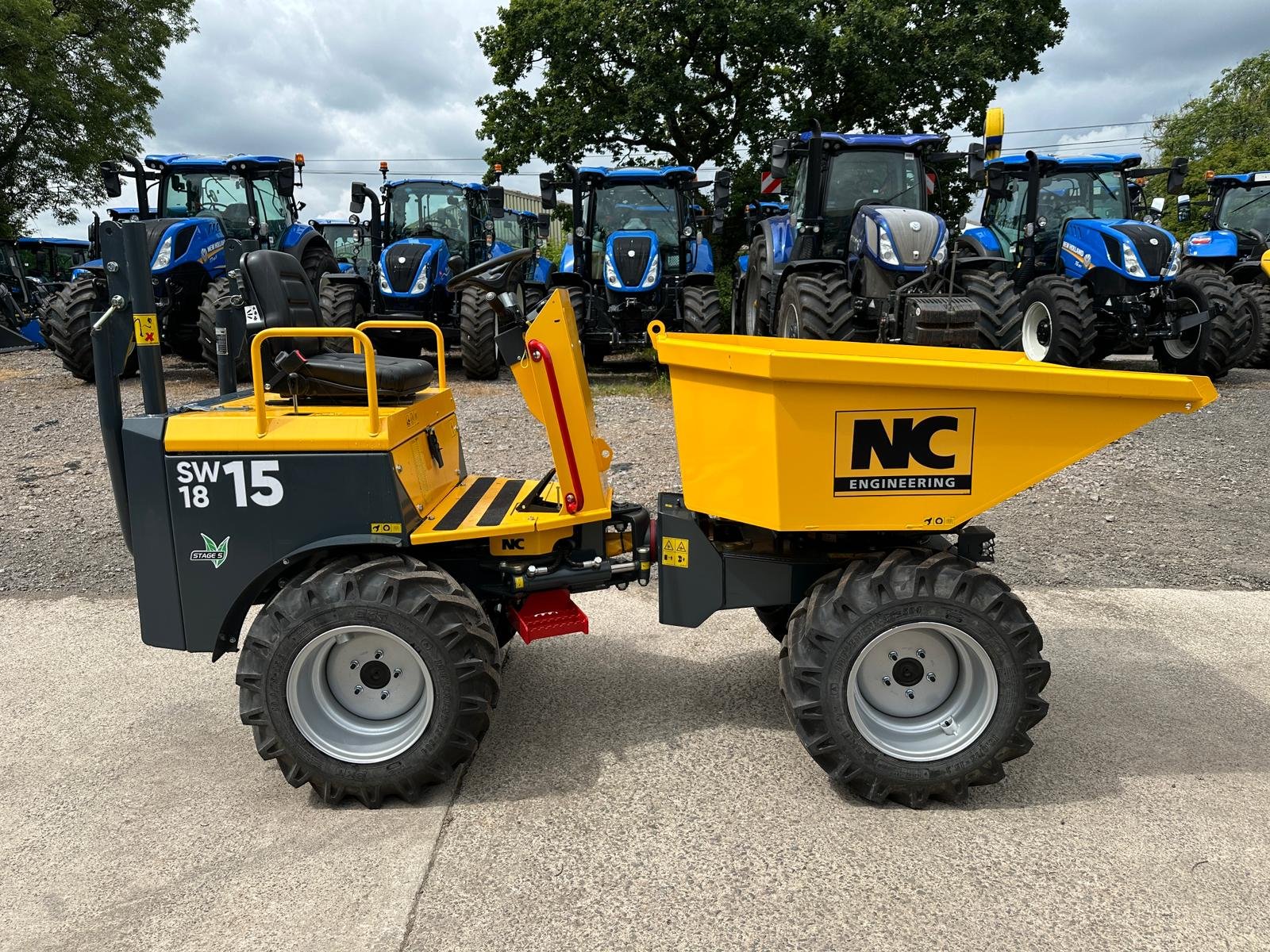

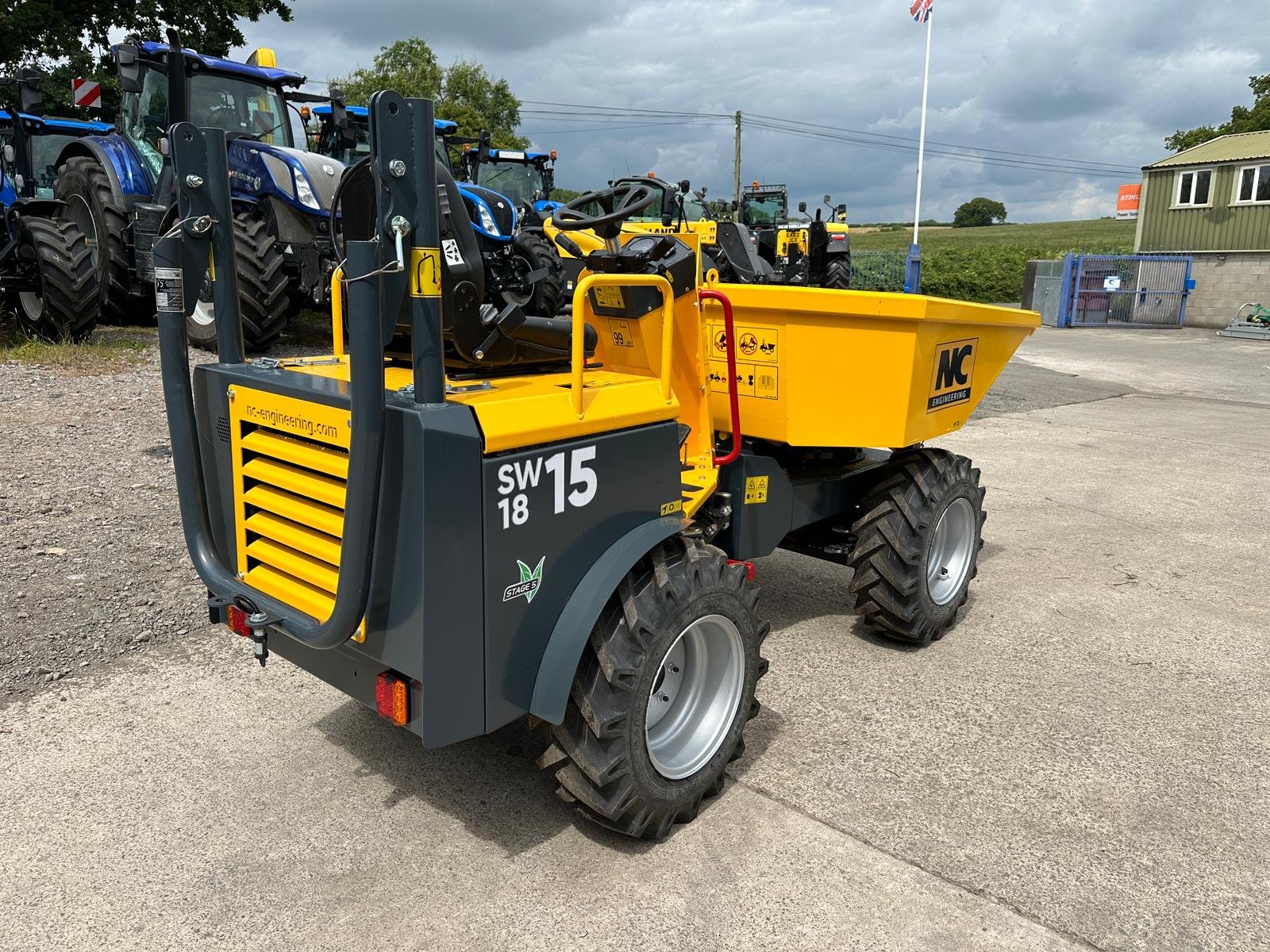

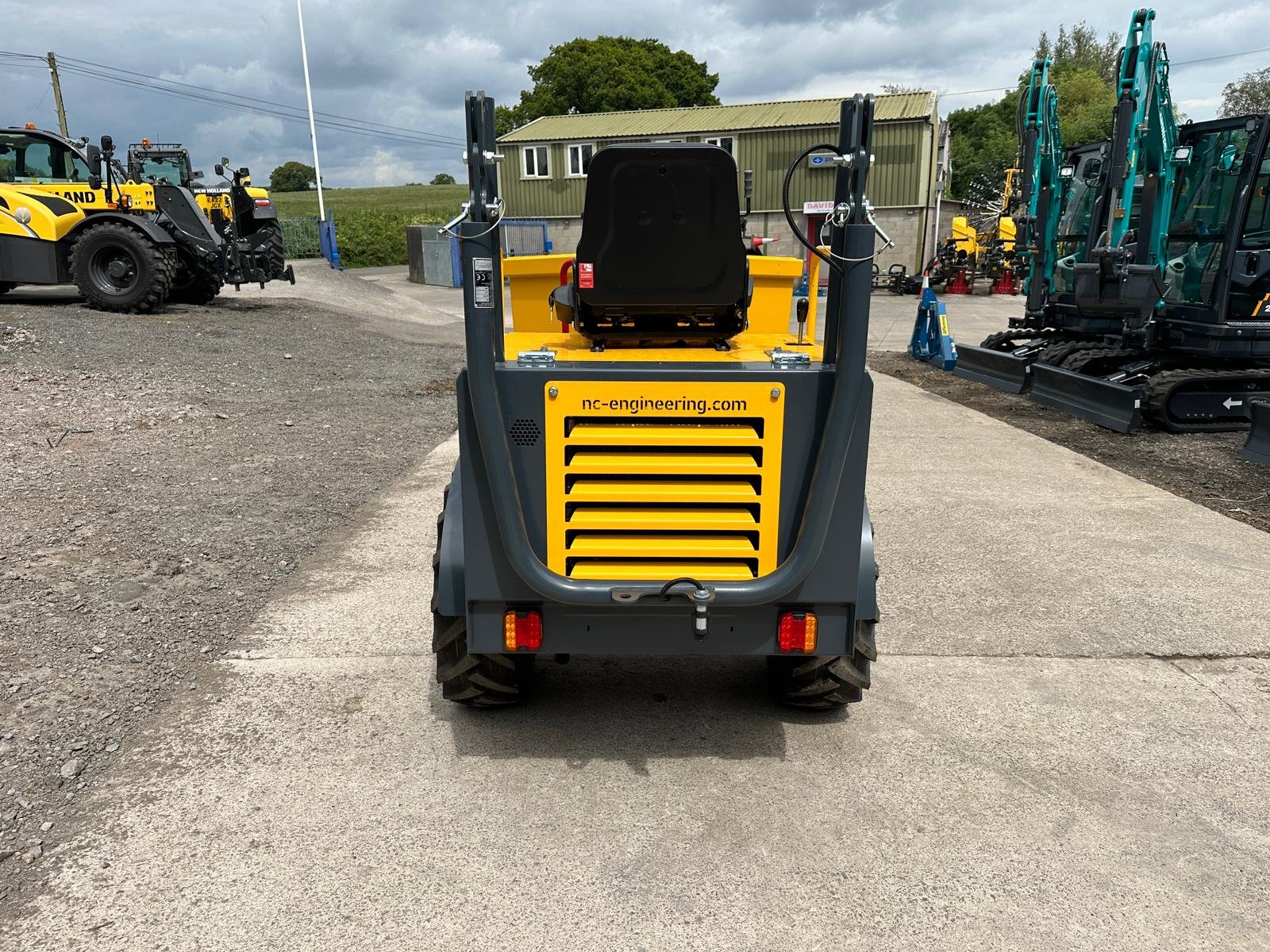

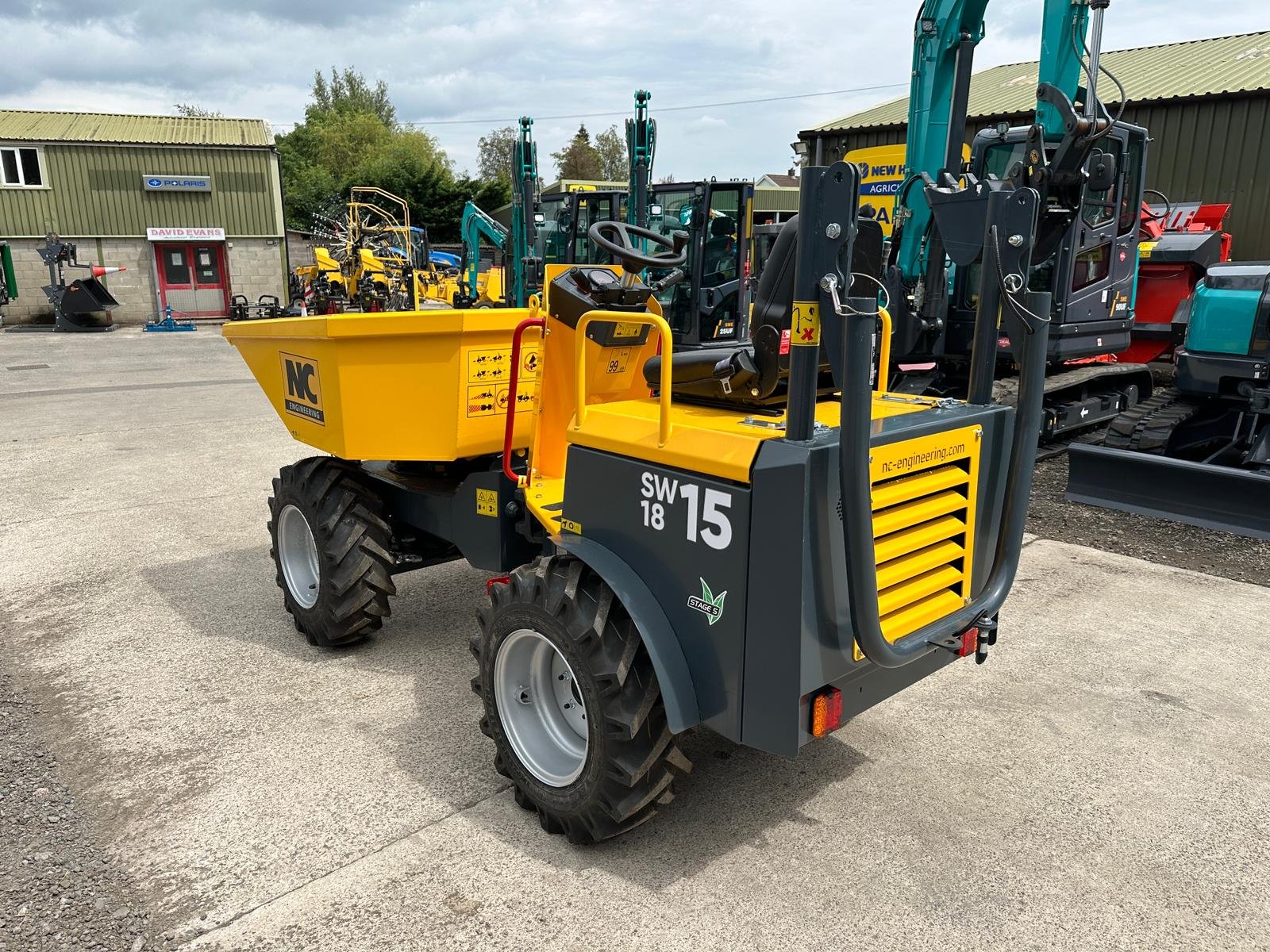

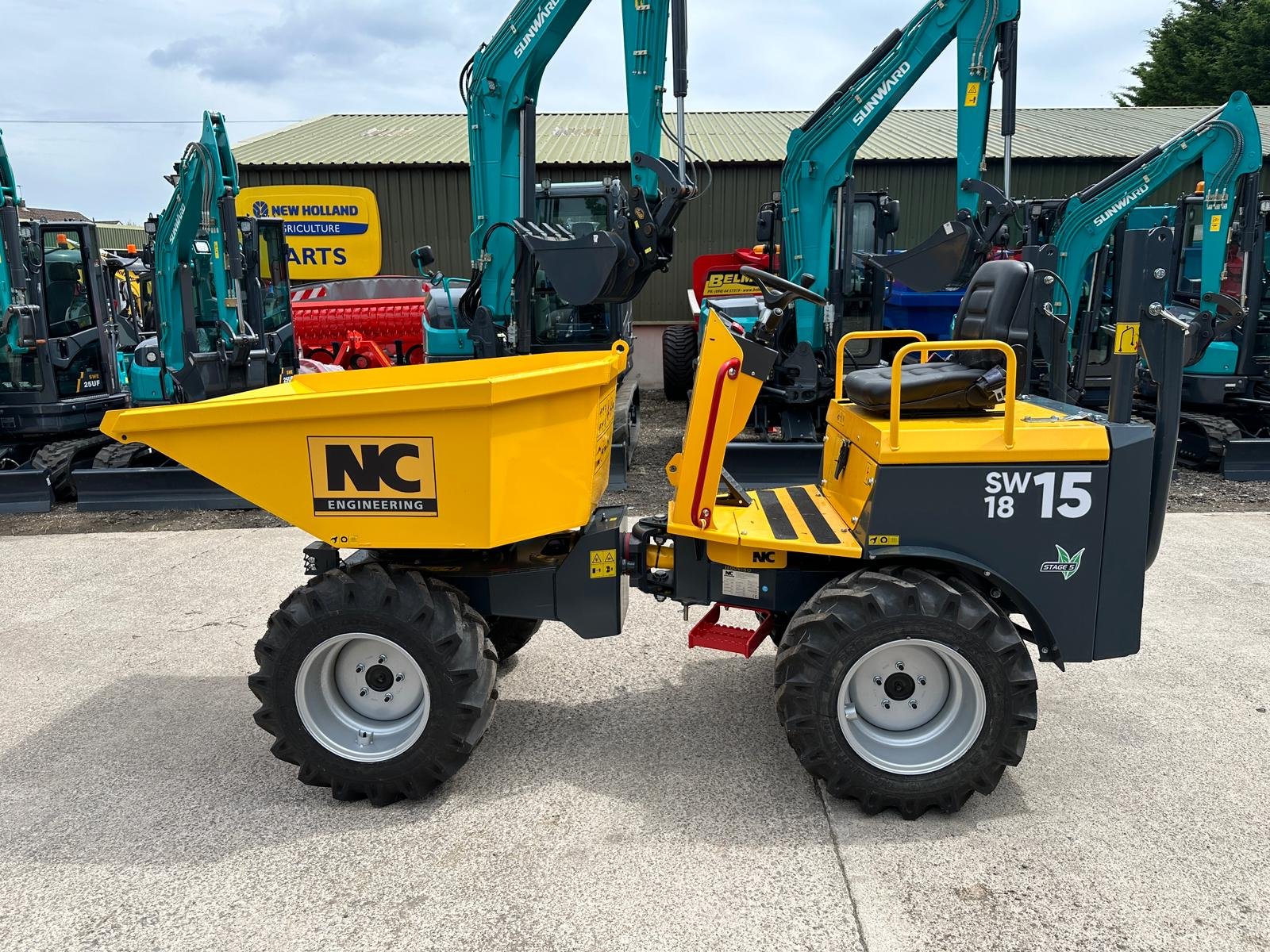

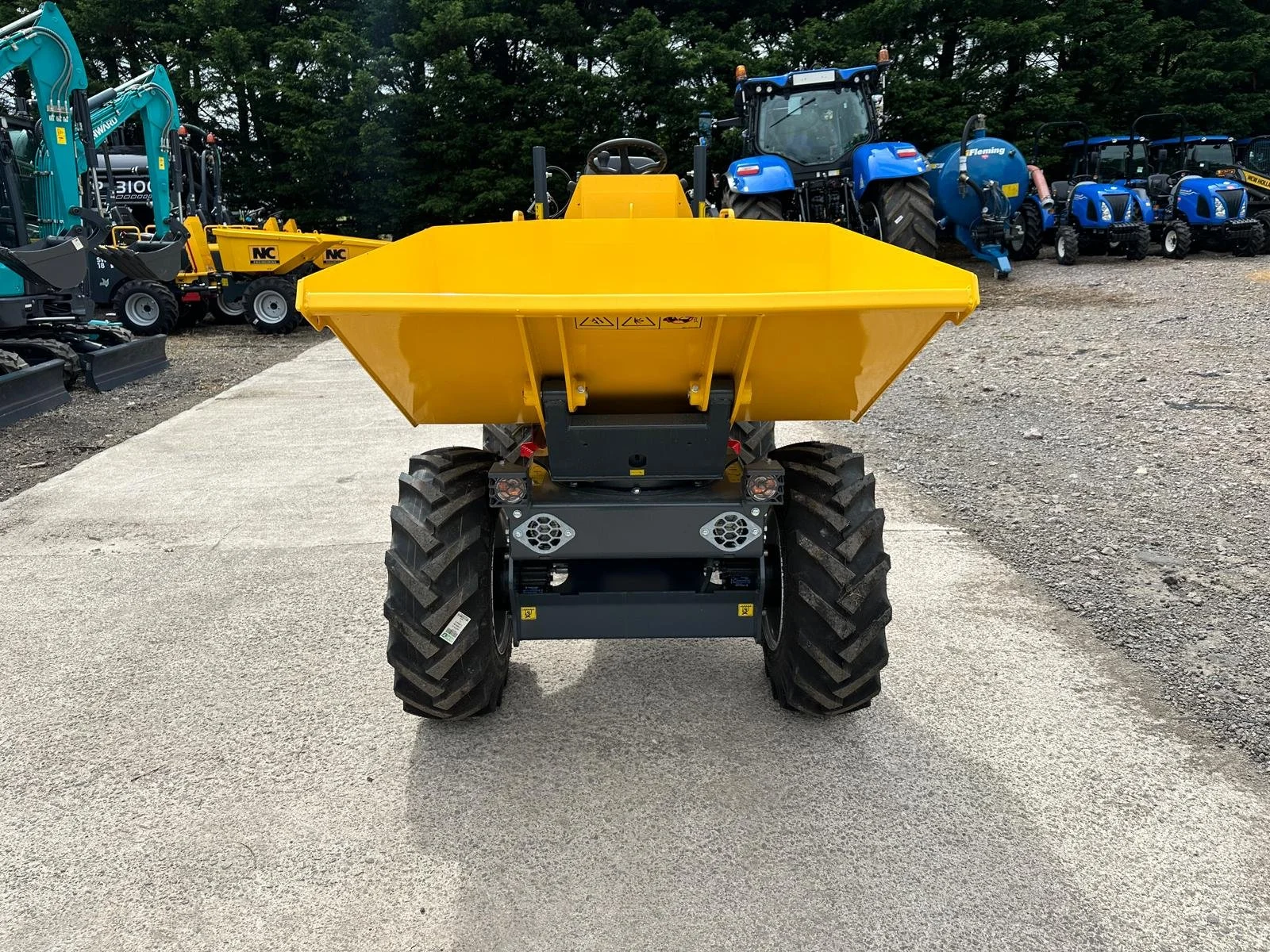

NC Engineering SW1850 (New)

Powerful, Compact, 4 Wheel Drive, Hydrostatic  Dumper

• Power is provided by the reliable Kubota D series engine

• Automotive DA controlled pump provides safe and smooth control at all times.

• Twin-Lock wheel motors provides power to each wheel via its own dual hydraulic motor . As one wheel starts to lose traction, the power is distributed to the other wheels to compensate thus giving Intelligent 4 wheel drive.

• With a steering angle of +/- 36.5° and gradeability  of 50% this makes the SW 1815 series dumper an effective tool for hard to access sites with difficult terrain.

• Steering: Priority load sensing hydrostatic centre pivot

• Working brakes: Hydrostatic retardation

• Park brake: Automatic in rear wheel motors

• Powerswivel

FEATURES

• Unrivalled operator access & comfort

• Excellent rough terrain performance from permanent 4-wheel drive

• Heavy duty construction

• Column operated forward and reverse directions with acceleration by foot pedal

• Simple and safe operation; drive direction on the steering column

• Simple instrument panel including fuel gauge, hour meter, warning lights for parking brake, oil temperature, oil pressure, engine temperature

• Folding ROPS as standard

• Flashing beacon as standard

• Easy access to engine compartment for service & maintenance

• Recovery hitch (Optional)

• 24.31 HP engine (18.2kW)

• Excellent power to weight ratio

• Ample ground clearance

• Excellent turning circle

• Reversing alarm as standard

• Separate fuel and hydraulic oil filler compartments

• Skip swivels 180°via joystick control

• Adjustable suspension seat

• Standard Width 1300mm
