B20 (Push Version)

The B20 is a compact and balanced stump grinder that can be used to grind down all types of tree stumps, weighing only 120Kg it’s easy to manoeuvre between jobs.

The pivot joint between the stump grinder and the wheel axle ensures easy and smooth grinding, even under difficult conditions.
The brakes can be applied individually to each wheel, so the machine can easily access the stump even if there are shavings in the way. The individual brakes can also be used to negotiate steps with ease.

 FSI B28

FSI B28 is for the serious professional user who carries out stump grinding jobs.

All operations, including travel and stump grinding, are controlled via the integrated control panel. The control panel can be used to engage/disengage the diff lock as well as to adjust the speed of the swing movement.

Safety is a top priority, and the safety handle on the control panel must be enabled to start the grinder head.

 FSI D30 Tracked

OPTIONAL DOZER BLADE

Self-propelled Stump Grinder with Tracks and diesel engine, also available as a Remote Control Version with an option for Dozer Blade on both models.

The new track version increased the terrain capability, and thus transport to stumps that need to be removed has been optimised. Another great benefit is the extreme stability achieved when grinding down a stump because of the high dead weight.

FSI D30 TRACK is equipped with a 25 Hp Kubota water-cooled diesel engine that is Stage V emission compliant and a cutting disc that is 470 mm in diameter. Hydraulic cylinders provide the stump grinder’s up/down and sideways movement. The machine is 775 mm in width, and with the belts in the outer position, the machine width is 1050 mm. The total weight is 950 kg.

All machine operations can be controlled via the panel, which can be turned during stump grinding, providing a good overview of the stump during the stump grinding process. An ergonomic safety bar on the panel functions as a support for the operator’s hands and as an emergency stop since it must be activated when moving the stump grinder and when grinding down stumps. To ensure maximum visibility and use, the machine is equipped with powerful LED work lights.

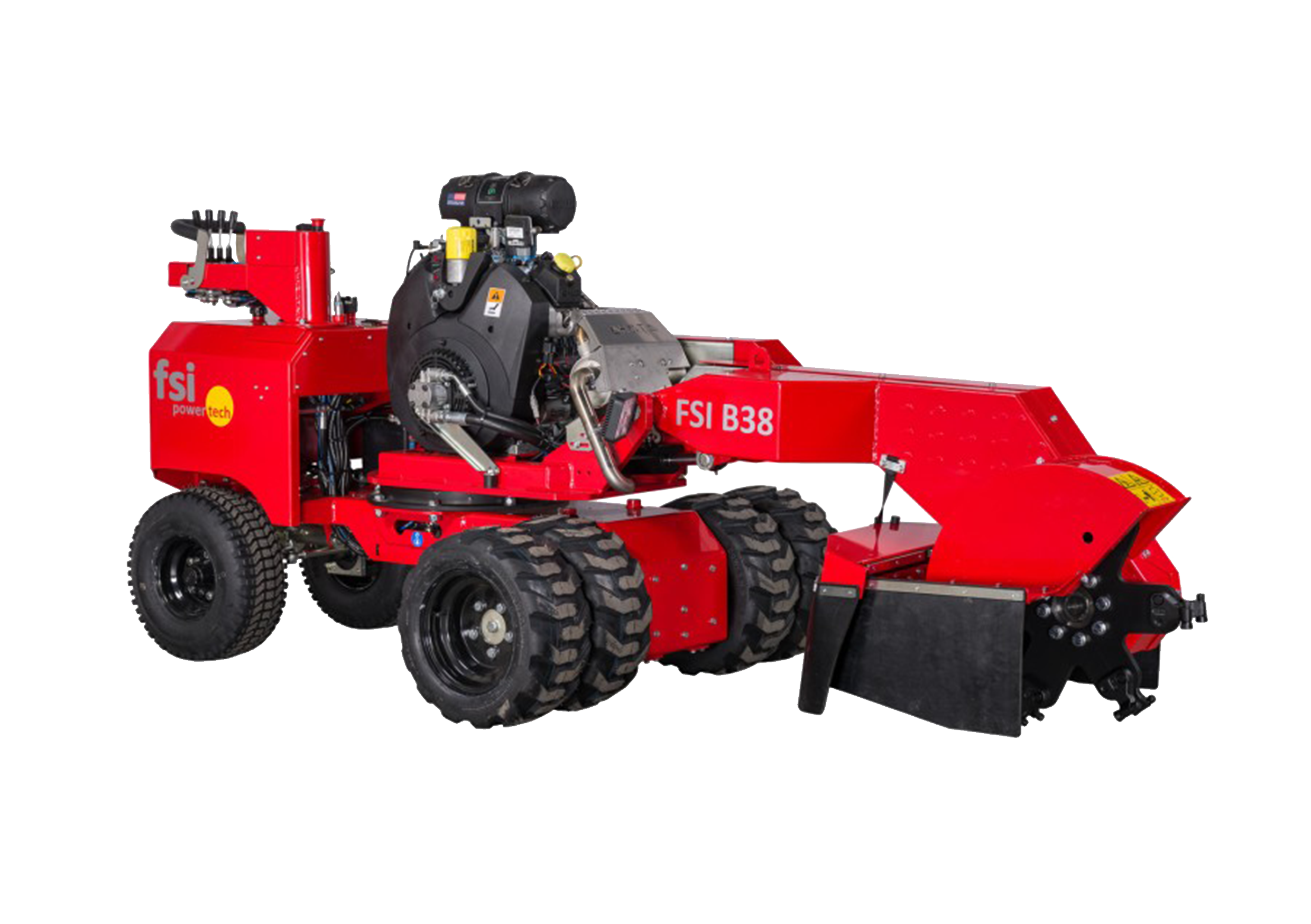

 FSI B38 4WD

Stump Grinder with 4WD and 38 hp petrol engine

• Machine width 79 cm / 31 Inches
• Sweep width 170 cm / 77 Inches
• Cutting depth 44 cm / 17,5 Inches
• Hydraulic 4-wheel drive with diff-lock
• Kohler 38 hp petrol engine

Standard includes:
• FSI power-drive, HI/LO with diff-lock on the front wheels
– HI 2-wheel drive, speed up to 3,5 km/h
– LO 4-wheel drive, double traction force, half speed
• Automatic brakes on the wheels
• Twin wheels with single centre-bolt for easy mounting
• Skid-steer tires on the front axle for optimal ground control
• FSI power clutch. Electric-hydraulic clutch system
with integrated brakes
• FSI power-sweep with auto-pilot for top performence
• Adjustable speed on the swing
• V-belt drive for optimal capacity with a minimum of power loss
• 3 x turnable teeth-system with FSI holders
• FSI power-cut special designed cutting wheel
• Sealed bearinghousing for the cutting wheel – no maintenance
• Integrated points for lashing
• Lifting points for handling with crane
• 90 degr. turnable control panel for optimal view to the
cutting area
• Al controls in one panel
• Safety bar. If the operator leaves the control panel
the cutting wheel will automatically stop

 FSI B38 Tracked

NEW

• Machine width 79 cm / 31 Inches
• Sweep width 170 cm / 77 Inches
• Cutting depth 44 cm / 17,5 Inches
• Gemmo expanddable Track base
• Kohler 38 hp petrol engine
• Scanreco Radio Remote ControlStandard includes:
• FSI power-drive
– HI – speed up to 3,5 km/h
– LO – double traction force, half speed
• Automatic brakes
• FSI power clutch. Electric-hydraulic clutch system
with integrated brakes
• FSI power-sweep with auto-pilot for top performance
• Adjustable speed on the swing
• V-belt drive for optimal capacity with a minimum power loss
• 3 x turnable teeth-system with FSI holders
• FSI power-cut special designed cutting wheel
• Sealed bearing housing for the cutting wheel – no maintenance
• Integrated points for lashing
• Lifting points for handling with crane
• Fully radio remote control of all functions incl. Battery charger,
extra battery and connection cable
• Operator panel with drive control
• LED work light
• Hanged and splitted chip protection

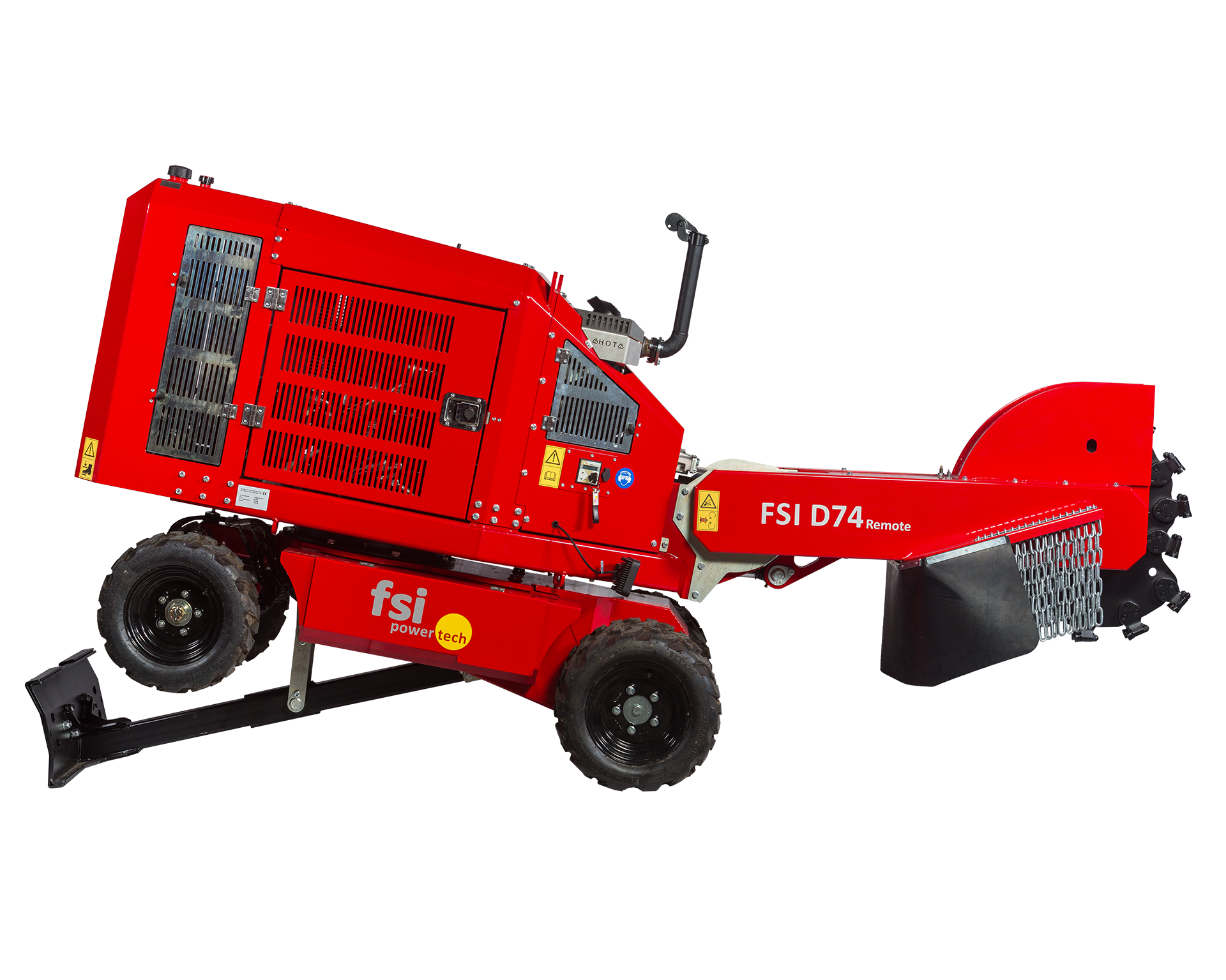

 D74 Remote

FOR THE PROFESSIONAL USE WHERE STUMP GRINDING FORMS A MAJOR PART OF THEIR DAILY LIFE.

With the NEW 74hp Kholer diesel engine, the large 720 mm grinding wheel and two-meter sweep all combine to give an incredible capacity. That, along with the 4-wheel drive and radio remote control, makes the D74 REMOTE your ideal partner for the grinding of tree stumps.

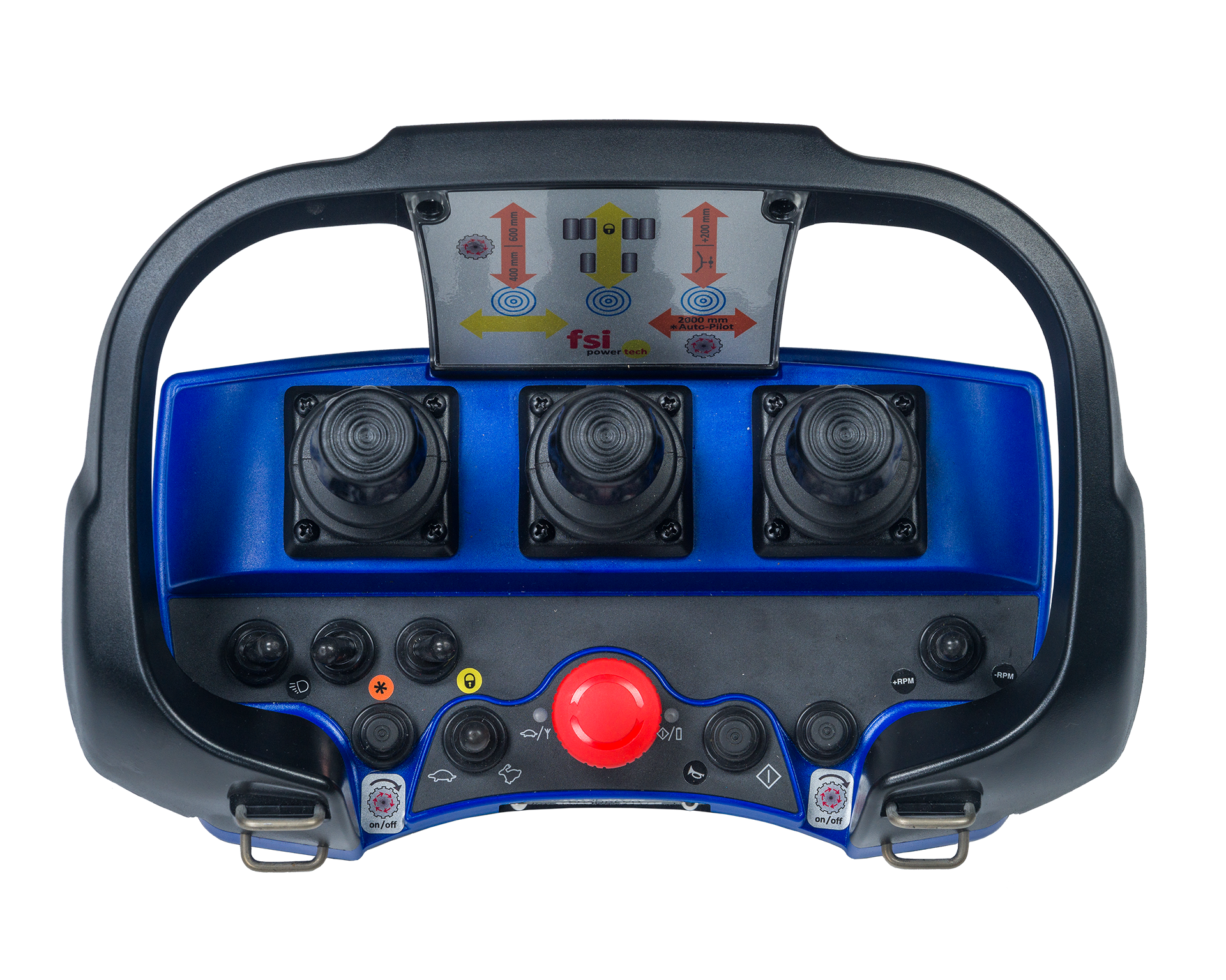

All travel and stump grinding operations are controlled via the radio remote control. A battery charger with a spare battery for the radio control system is mounted on the machine. Includes a cable to connect directly to the remote control.

When the machine is equipped with the optional Dozer Blade, this also can provide extra grinding depth.

The machine is also equipped with an autopilot swing function for optimum grinding capacity. The autopilot adjusts the swing speed based on the engine load. The autopilot optimises capacity and makes it simpler to operate the machine.

Standard delivery includes:

Twin wheels.

LED work light. Turn on and off via the remote control.
