Hydraulic Stump Grinders
FSI H20
Hydraulic Stump Cutter for 30-50 l/min.
FSI H20 is a stump grinder attachment for excavators, articulated mini loaders or similar machinery.
The recommended excavator size is 1.5 – 2.5 t.
The H20 is attached using a tool grip/coupling and the grinding movement is performed via the controls on the carrying machine.
Includes hydraulic hoses and uncoated top plate to weld on the tool grip.

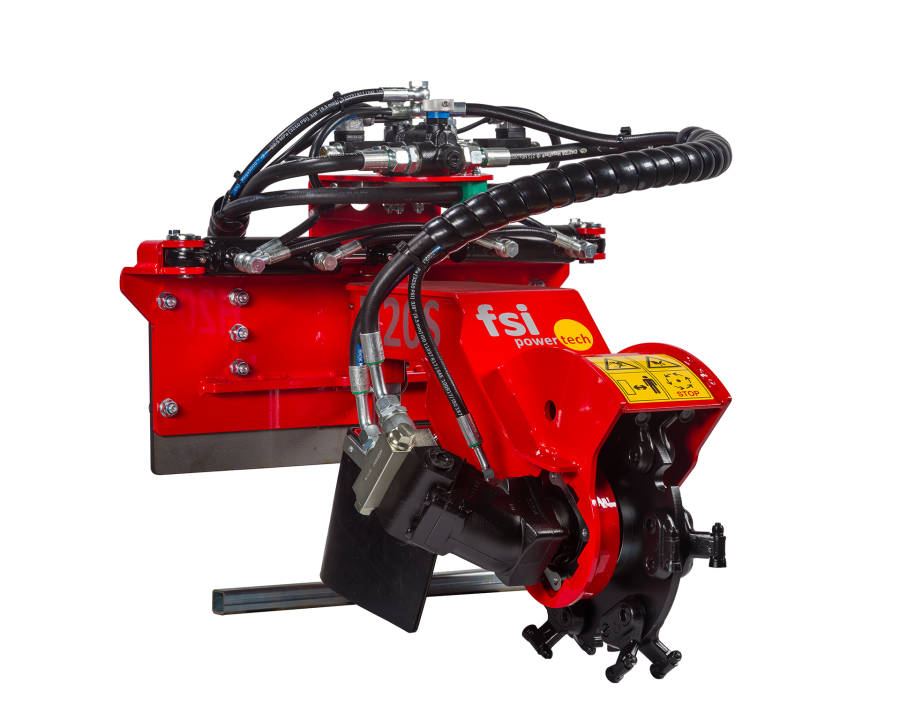

FSI H20S (with sweep)
FSI H20S
Hydraulic Stump Cutter with a sweep for 30-50 l/min.
FSI H20S is a stump grinder attachment with an integrated swing movement for loaders and tool carriers.
The recommended machine size is 1.5 – 2.5 t.
The H20S is attached using a tool grip/coupling. The swing movement is performed using two cylinders controlled either from the electronic control box or connected via an existing joystick.
The machine is equipped with a flange to attach the tool grip. Includes hydraulic hoses.
FSI H20S-5
Hydraulic Stump Cutter with a sweep for 30-50 l/min.
FSI H20S-5 is a stump grinder attachment for loaders and tool carriers where the swing movement is controlled from existing outlets.
This requires the connection of 2 x pressure/return lines and 1 x pressureless return line on the tool carrier.
The H20S-5 is attached using a tool grip/coupling. The swing movement is performed using two cylinders controlled from a double-action outlet.
The machine is equipped with a flange to attach the tool grip.
Includes hydraulic hoses.
FSI H40
Hydraulic Stump Cutter for 50-75 l/min or 80-110 l/min
FSI H40 is a stump grinder attachment for excavators, articulated mini loaders or similar machinery.
The recommended excavator size is 3 – 7 t.
The H27 is attached using a tool grip/coupling. The grinding movement is performed via the carrying machine.
Includes hydraulic hoses and uncoated top plate to weld on the tool grip.
FSI H40S AND H40S-5
Hydraulic Stump Cutter with a sweep for 50-75 l/min or 80-110 l/min
FSI H40S is a stump grinder attachment with an integrated swing movement for loaders and tool carriers.
The recommended machine size is 1.5 – 2.5 t.
The H40S is attached using a tool grip/coupling. The swing movement is performed using two cylinders controlled either from the electronic control box or connected via an existing joystick.
The machine is equipped with a flange to attach the tool grip.
Includes hydraulic hoses.
FSI H40S-5 is a stump grinder attachment for loaders and tool carriers where the swing movement is controlled from existing outlets.
This requires the connection of 2 x pressure/return lines and 1 x pressureless return line on the tool carrier.
The H40S-5 is attached using a tool grip/coupling. The swing movement is performed using two cylinders controlled from a double-action outlet.
The machine is equipped with a flange to attach the tool grip.
Includes hydraulic hoses.
FSI H52
Hydraulic Stump Cutter for 80-100 l/min.
FSI H52 is a stump grinder attachment for excavators, articulated mini loaders or similar machinery.
The recommended excavator size is 8 – 14 t.
The H52 is attached using a tool grip/coupling and the grinding movement is performed via the carrying machine.
Includes uncoated top plate to weld on the tool grip.
FSI H65 100-130
Hydraulic Stump Cutter for 100-130 l/min.
FSI H65 is a stump grinder attachment for excavators.
The recommended excavator size is 12 – 20 t.
The H65 is attached using a tool grip/coupling and the grinding movement is performed via the excavator.
Includes uncoated top plate to weld on the tool grip.
FSI H65 135-160
Hydraulic Stump Cutter for 135-160 l/min.
FSI H65 is a stump grinder attachment for excavators.
The recommended excavator size is 12 – 20 t.
The H65 is attached using a tool grip/coupling and the grinding movement is performed via the excavator.
Includes uncoated top plate to weld on the tool grip.
FSI H65 165-200
Hydraulic Stump Cutter for 165-200 l/min.
FSI H65 is a stump grinder attachment for excavators.
The recommended excavator size is 12 – 20 t.
The H65 is attached using a tool grip/coupling and the grinding movement is performed via the excavator.
Includes uncoated top plate to weld on the tool grip.
